If you need to measure any process variable, and you want a meter that is easy to install and set up, the Intuitive Series of 1/8 DIN digital panel meters is for you. User-friendly, reliable and accurate, with a 3 year warranty. We design, manufacture and supply to all parts of the world.
  • 1/8 DIN (92mm x 45mm) panel cutout
  • Drop-in replacement for the old INT2
  • Analogue output, alarm outputs and serial output options

INT4-AH

Suits 50mV, 60mV, 75mV and 100mV shunts. Can be set to accumulate in a timebase of minutes, hours or days


View

INT4-H

Real time clock mode and up or down timing modes with 3 x contact closure control inputs.

  • Clock mode – HH:MM:SS
  • Day counter mode – number of days elapsed since last reset
  • HH:MM timer mode
  • MM:SS timer mode
  • SSSS timer mode
  • SSSSS.t timer mode
  • MMMM timer mode
  • HH:MM:SS timer mode
  • DD:MM:YY calendar mode
  • MM:DD:YY calendar mode

View

INT4-C

Various counting modes.

  • Simple counting mode
  • Gated counting mode
  • 1 input with up/down control mode
  • 2 inputs up/down mode
  • 2 inputs up/up mode
  • 4 inputs up/up/down/down mode
  • 4 inputs up/up/up/up mode
  • 4 inputs down/down/down/down mode

Accepts different signal types and provides 24V DC sensor excitation as standard.

  • Contact closure
  • NPN
  • PNP/pushpull
  • TTL
  • CMOS
  • Passive coil
  • AC tacho

View

INT4-C

Rate mode is ideal for showing…..

  • Frequency
  • Flow rate
  • RPM
  • Instantaneous speed

Production rate mode is ideal for showing real production rates over longer periods.

Accepts different signal types and provides 24V DC sensor excitation as standard.

  • Contact closure
  • NPN
  • PNP/pushpull
  • TTL
  • CMOS
  • Passive coil
  • AC tacho

View

INT4-I

4-20mA or 0-10V input integrated with respect to time. Switch between total and the instantaneous rate.


View

INT4-L

Our most popular 1/8 DIN load cell panel meter has high precision and stability.

  • 4 or 6 wire load cell input
  • 10V @ 120mA excitation voltage (5V optional)
  • Up to 4mV/V as standard (10mV/V optional)

View

INT4-P

Our most popular 1/8 DIN process panel meter has high precision and stability.

  • 4-20mA, 0-10V or 1-5V input
  • 24V @ 30mA excitation voltage (5V or 10V optional)
  • Adjustable 0-25 seconds filtering
  • Selectable 1, 2, 5, 10, 20 or 50 last digit round-up
  • Up to 10 points of user linearisation

View

INT4-C

Quadrature mode allows you to scale a count and increase or decrease the value according to the sequencing of two pulses which are 90 degrees out of phase. This mode is ideal for measuring distance in pay-out/feed-in cable systems or direction in rotary systems.


View

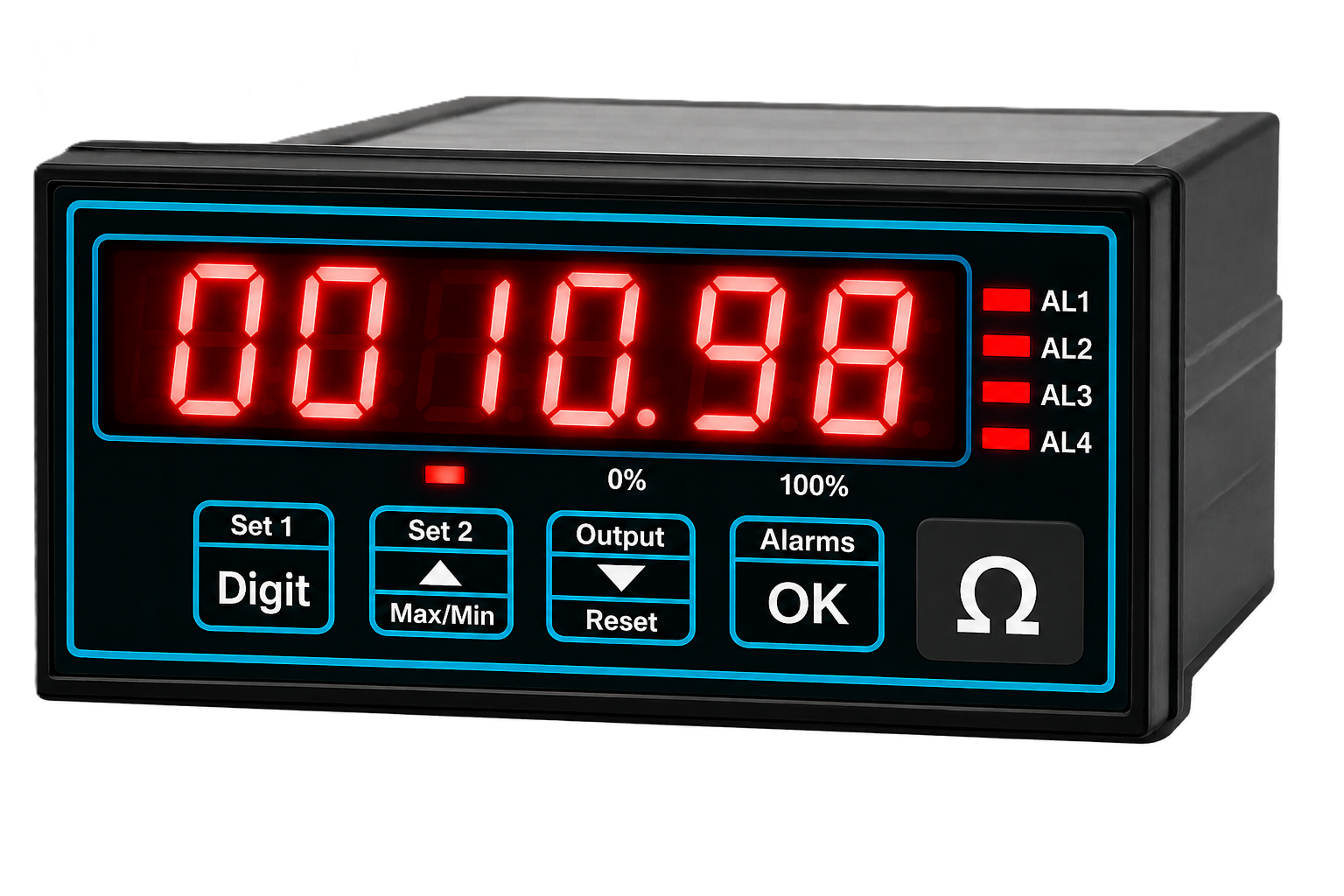

INT4-R

Ideal for measuring the resistance of a wide range of components such as…..

  • Motor windings
  • Incandescent lamp filaments
  • Heater element resistance
  • Inductors
  • Earth bonding
  • Solenoid coils
  • Relay coils
  • Servo coils

We use 4-wire measurement methods to ensure that the cable resistance is cancelled automatically from the measurement.


View

INT4-S

RS232, RS422, or RS485 ASCII reciever display.


View

INT4-T24

Accepts wireless data from the Mantracourt T24 wireless telemetry range.


View

INT-T

Temperature display / controller accepting…..

  • 3-wire PT100 DIN
  • 3-wire PT100 ANSI
  • Thermocouple type J
  • Thermocouple type K
  • Thermocouple type N
  • Thermocouple type R
  • Thermocouple type S
  • Thermocouple type T

View
