LELCLK

Large Digit Indoor Clock

Our range of LELCLK displays are 4 digit, digital clocks which show the time as HH:MM. They are available in 3 digit colours, green, red or yellow. The units are made from uPVC and sealed to IP65. This makes them suitable for washdown environments. The accuracy is better than +/- 10 seconds per month and Summer/Winter time correction is automatic. Suitable for both industrial and non-industrial environments, these clocks are ideal for use in schools, libraries, banks, hospitals, offices, and factories.
  • Indoor clock
  • 4 digit display in HH:MM format
  • Green, red or yellow digits, indoor brightness
  • Automatic Summer/Winter time adjust

Function / Input Type

The LELCLK range of indoor clocks consist of 4 digits in HH:MM format, with a choice of  green, red or yellow digits. There are five-digit heights available…..

  • 57mm digit height, legible up to 25m
  • 102mm digit height, legible up to 50m
  • 150mm digit height, legible up to 75m
  • 200mm digit height, legible up to 100m
  • 300mm digit height, legible up to 150m
  • 400mm digit height, legible up to 200m

The enclosures are industrial grade IP65 sealed, making them suitable for washdown environments. The accuracy is better than +/- 10 seconds per month and Summer/Winter time correction is automatic.

Suitable for both industrial and non-industrial environments, these clocks are ideal for use in schools, libraries, banks, hospitals, offices, and factories. In the event of power loss, a battery will continue to maintain the time so no re-set will be required once power has been restored.

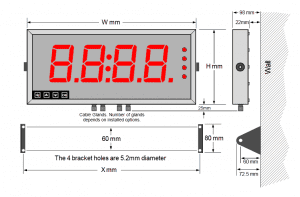

Dimensions

Wall Mounting dimensions

  • LELCLK2 X=292 H=154.5 W=291
  • LELCLK4 X=454 H=195.5 W=453
  • LELCLK6 X=581 H=246 W=580
  • LELCLK8 X=751 H=290 W=750
  • LELCLK12 X=1051 H=408 W=1050
  • LELCLK16 X=1369 H=515 W=1368

Suspension Mounting dimensions

  • LELCLK2 X=245 H=154.5 W=291 Y=275
  • LELCLK4 X=407 H=195.5 W=453 Y=437
  • LELCLK6 X=534 H=246 W=580 Y=564
  • LELCLK8 X=704 H=290 W=750 Y=734
  • LELCLK12 X=1004 H=408 W=1050 Y=1034
  • LELCLK16 X=1322 H=515 W=1368 Y=1352
Digit Height

2 inch (57mm), 4 inch (102mm), 6 inch (150mm), 8 inch (200mm), 12 inch (300mm), 16 inch (400mm)

Number of Digits

4 in HH:MM format

Digit Colour

Red, Indoor Brightness

Accuracy

Better than +/- 10 seconds per month

Daylight Saving

Summer/Winter time correction is automatic

Case Material

Black uPVC with red acrylic lens

Sealing

IP65 all round, suitable for washdown environments

Supply Voltage

95-265V AC (AC)

Mounting Options

Wall Mounting, Suspension Mounting

Battery Backup

In event of power loss, time is maintained by internal battery

Storage Temperature

-20C to +70 Deg.C

Operating Temperature

0C to +50 Deg. C
