FIRE-T Fire Evacuation Display & Countdown Timer
Emergency Fire Display & Evacuation Countdown Timer
Making Every Second Visible
The London Electronics FIRE-T range provides highly visible, real-time countdown information during fire investigation and evacuation procedures. Designed for warehouses, fulfilment centres, manufacturing facilities, logistics hubs and other large industrial buildings, FIRE-T acts as an emergency fire display, giving personnel a clear visual indication of investigation and evacuation periods.
Integrated with existing fire alarm panels, Building Management Systems (BMS), PLCs and other control systems, the FIRE-T fire evacuation display helps ensure that critical timing information can be seen clearly across the facility during an emergency. Designed and manufactured in the UK, FIRE-T is available with digit heights from 2 inches to 48 inches, providing excellent visibility across a wide range of industrial environments.
Powered by Industrial Technology
For over 30 years, London Electronics has designed and manufactured industrial display systems for factories, airports, logistics centres, warehouses and critical infrastructure worldwide. FIRE-T builds on this proven industrial technology to provide a dependable fire safety display for sites where clear, immediate information is essential.
Each display is designed for continuous industrial use, manufactured using industrial-grade electronics and backed by a comprehensive 3 Year Warranty.
Clear Visual Information When Every Second Matters
During an emergency, every second counts. FIRE-T provides a highly visible fire countdown timer that can be seen across large industrial buildings, helping personnel understand the current stage of the emergency procedure and the time remaining.
Large, high-brightness LED digits provide excellent visibility, including within brightly lit warehouses, production facilities and distribution centres. No ambiguity. No uncertainty. Just clear visual information when it matters most.
Fire Investigation & Evacuation Countdown
FIRE-T has been designed to display two configurable countdown stages controlled by the host fire alarm system, Building Management System or PLC. The system accepts Contact Closure, PNP or NPN signals.
Investigation Period
Following activation of the fire alarm, the FIRE-T fire alarm display shows a configurable investigation countdown. This gives authorised personnel a clearly visible indication of the time available to investigate the alarm condition before full evacuation procedures begin.
Typical Example
02:00 → 00:00
Evacuation Period
Where evacuation is required, FIRE-T automatically changes to the evacuation countdown. The fire evacuation display provides a clear visual indication of the remaining evacuation time throughout the facility, helping reinforce the site’s established emergency procedures.
Both investigation and evacuation countdown periods can be configured to suit individual site requirements.
Three-Colour Dynamic Fire Safety Display
FIRE-T is available with three-colour LED technology, providing an immediate visual indication of the current stage of an emergency response.
GREEN
Investigation phase.
AMBER
Warning period.
RED
Evacuation phase.
Automatic colour transitions provide an additional visual cue, allowing personnel to identify the current status quickly, even from long viewing distances. Combined with the large LED fire countdown timer, this provides a simple and highly visible method of communicating changing emergency stages across large facilities.
Available Display Sizes
The FIRE-T range is available in a variety of display sizes to suit installations ranging from smaller control rooms to large warehouses, manufacturing plants and distribution facilities.
Each emergency fire display is manufactured to the same industrial standard and can be supplied with custom legends, mounting arrangements and communication interfaces to suit the application.

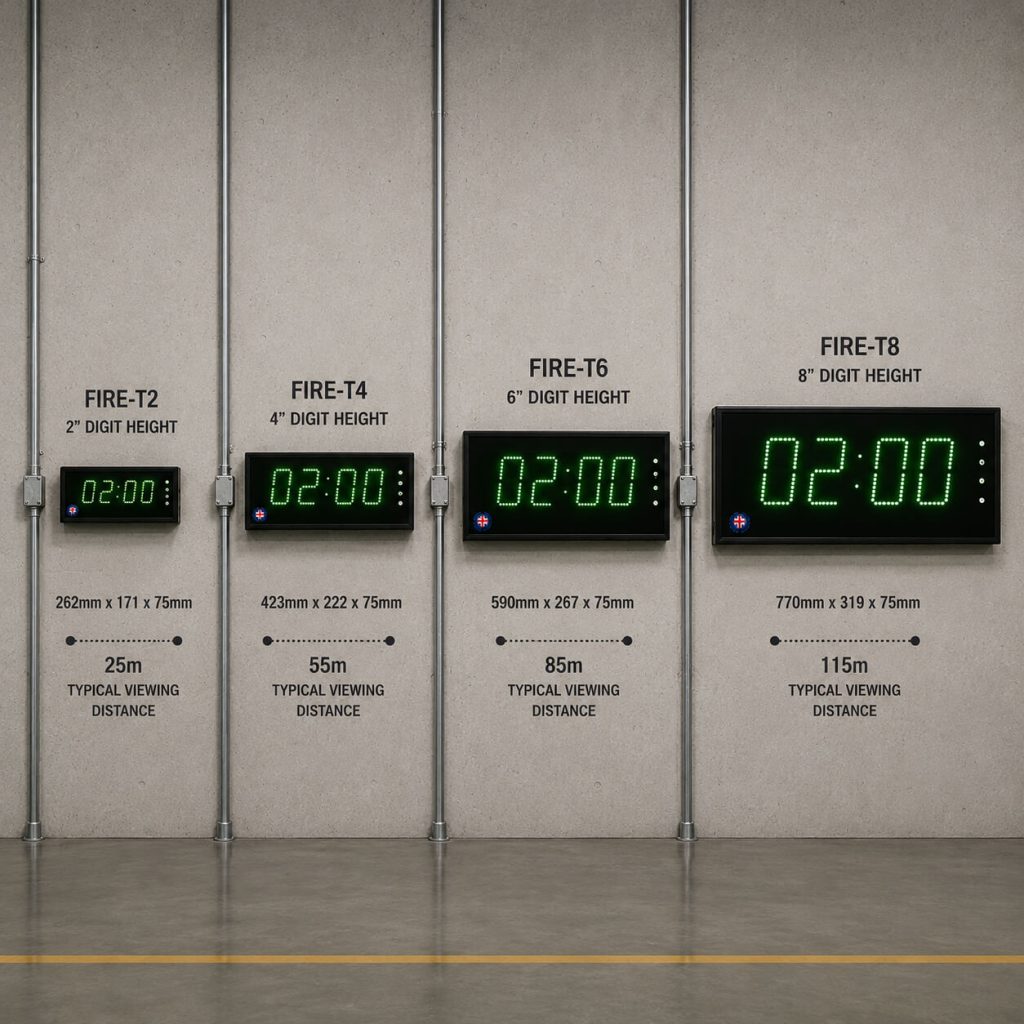

| Model | Digit Height. | Case Size (W × H × D) | Typical Viewing Distance |
| FIRE-T2 | 2″ | 262mm x 171 x 75mm | 25m |
| FIRE-T4 | 4″ | 423mm x 222mm x 75mm | 55m |
| FIRE-T6 | 6″ | 590mm x 267mm x 75mm | 85m |
| FIRE-T8 | 8″ | 770mm x 319mm x 75mm | 115m |
Custom digit heights, enclosure sizes, viewing distances and bespoke configurations are also available upon request.
Need help selecting the correct display? London Electronics can recommend the most appropriate FIRE-T model based on viewing distance, mounting location, environmental conditions and communication requirements.
Flexible System Integration
FIRE-T has been designed for straightforward integration into existing fire and safety infrastructure.
Compatible with:
- Building Management Systems (BMS)
- Fire Alarm Systems
- PLC Control Systems
- Digital Inputs
- Ethernet Communications
- RS-485
- Modbus
- Custom Communication Protocols
The display simply responds to commands from the controlling system, making installation straightforward and reliable.
Built for Industrial Environments
Unlike consumer-grade displays, FIRE-T has been designed specifically for demanding industrial applications.
Features include:
- High-brightness industrial LED technology
- Three-colour LED operation
- Outstanding long-distance visibility
- Industrial-grade electronics
- Rugged aluminium enclosure
- Continuous-duty operation
- Low maintenance
- Long operational life
- Designed & Manufactured in the UK
- Comprehensive 3 Year Warranty
TYPICAL APPLICATIONS
Warehouses
Distribution Centres
Fulfilment Centres
Manufacturing Plants
Logistics Hubs
Production Facilities
Airports
Utilities
Data Centres
Public Buildings
Industrial Safety Systems
Fire Investigation Procedures
Emergency Evacuation Procedures
KEY FEATURES
- Investigation & evacuation countdown display
- Available from 2″ to 48″ digit heights
- Three-colour LED technology
- High-brightness industrial LEDs
- Outstanding long-distance visibility
- Fully configurable countdown periods
- BMS integration Fire alarm interface
- PLC compatibility
- Rugged aluminium enclosure
- Designed & manufactured in the UK
- Comprehensive 3 Year Warranty
TECHNICAL SPECIFICATIONS
- Product Family: FIRE-T
- Display Type: Industrial LED Countdown Display
- Digit Heights: 2″ to 48″
- Display Colours: Green / Amber / Red (Three-Colour Option)
- Control Inputs: BMS, Fire Alarm Systems, PLCs, Digital Inputs
- Communications: Ethernet, RS-485, Modbus, Custom Protocols
- Enclosure: Industrial Aluminium Construction
- Duty Cycle: Continuous Operation
- Mounting: Wall, Ceiling or Custom Mounting Options
- Power Supply: 24V DC (other options available)
- Design & Manufacture: United Kingdom
- Warranty: 3 Years
Why Choose London Electronics?
With over three decades of industrial electronics experience, London Electronics has built a reputation for producing reliable display and control systems used worldwide.
When you invest in LE Flyball Pro, you’re investing in:
- British design and manufacture
- Industrial-grade technology
- Exceptional daylight visibility
- Precision competition timing
- Rapid deployment
- Durable transportable equipment
- Expandable system architecture
- UK technical support
- Long-term product availability
- Comprehensive 3-Year Warranty
Let’s get your display specified today
Request your tailored quote now — provide your viewing distance, signal type and environment, and we’ll recommend the perfect model. Free installation guidance included.
