Large LED Digit Displays

A large digit LED display is designed to show numerical information clearly over much greater viewing distances than a conventional panel meter or small digital display.

London Electronics FUSION displays are designed for industrial applications and can display information including weight, temperature, pressure, flow, level, production counts, speed, RPM and time.

A 4–20mA transmitter can be connected directly to a suitable large process display and scaled into the required engineering value.

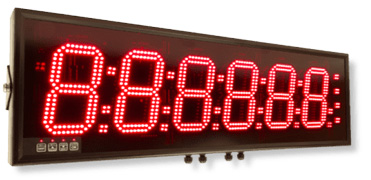

Our FUSION-P large digit display accepts industrial process signals including 4–20mA, 0–20mA and 0–10V, making it suitable for displaying pressure, level, flow, temperature and other process measurements.

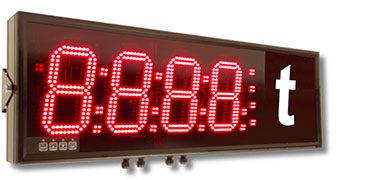

Yes. Our FUSION-L large digit weighing displays accept load cell inputs directly and can provide a large, clearly visible indication of weight or load.

They are suitable for applications including hoppers, silos, tanks, cranes, weighing systems and industrial load monitoring.

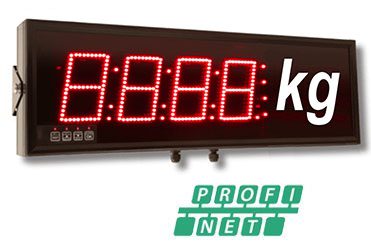

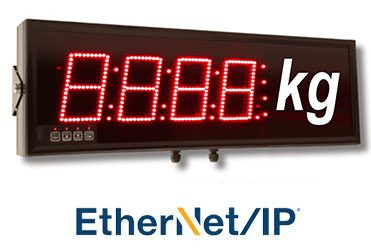

Yes. London Electronics manufactures large displays specifically for PLC and industrial automation applications.

Communication options include Profinet, Profibus, EtherNet/IP, Ethernet TCP/IP, Modbus and serial communications, allowing information from a PLC or control system to be displayed clearly to operators.

The correct digit height depends primarily on the maximum viewing distance.

As a guide, our 2-inch digits are typically readable to approximately 25m, 4-inch to 55m, 6-inch to 85m, 8-inch to 120m, 12-inch to 160m and 16-inch to over 200m. Larger digit sizes are available for significantly greater viewing distances.

Tell us your maximum viewing distance and we can recommend the most appropriate size.

Yes. A pressure transmitter with an industrial output such as 4–20mA can be connected directly to our FUSION process display.

The display can then be scaled to show the required pressure value and engineering units.

Yes. Suitable level sensors and transmitters can be connected to our large process displays.

For example, a 4–20mA level transmitter can be scaled so that the large display shows litres, tonnes, percentage full, depth or another required engineering value.

Yes. Flow can be displayed from a suitable process, pulse or frequency signal depending on the flowmeter being used.

If you provide the output type from your flowmeter, we can recommend the appropriate FUSION display.

Yes. Our pulse and rate input displays can calculate and display values including RPM, speed, frequency and production rate from a suitable sensor or pulse signal.

Yes. FUSION counter displays can accept pulse, contact closure, NPN, PNP and TTL inputs, making them ideal for large production counters and factory output displays.

Production totals can therefore be clearly visible across a production area rather than only at the individual machine.

Yes. Our large digital timer displays can be configured for countdown and industrial timing applications.

They can be used for production processes, downtime, testing, manufacturing, events and other applications where time needs to be clearly visible at distance.

Yes. FUSION timer displays can be configured for elapsed-time applications as well as countdown timing.

External Start, Stop and Reset controls can also be provided where required.

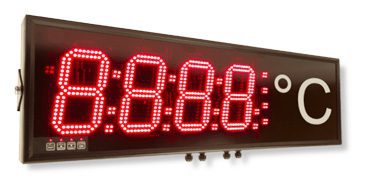

Yes. Our FUSION-T large temperature displays can accept thermocouple and RTD temperature sensors directly.

Supported sensor types include common thermocouples together with PT100, PT500 and PT1000 sensors.

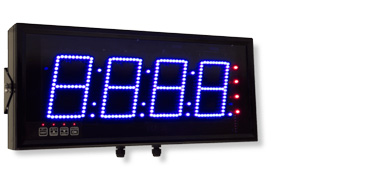

Yes. Large LED displays are frequently used as remote or secondary displays where information from another instrument, PLC, computer or control system needs to be visible elsewhere.

RS232, RS422, RS485, Modbus, Ethernet and other industrial communication options are available depending on the application.

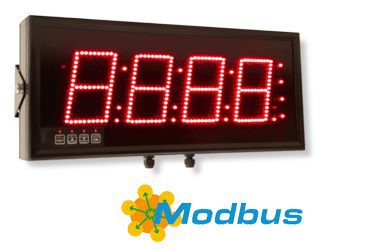

Yes. RS485 and Modbus communication options are available for integration with PLCs, control systems, instrumentation and industrial networks.

Both serial and direct fieldbus/network versions are available depending on the application.

Yes. Our large display range can be configured for direct communication with PLC and industrial automation systems.

Options include Profinet, Profibus, EtherNet/IP, Ethernet TCP/IP, Modbus RTU and other industrial communication protocols.

Yes. Our standard FUSION large digit displays are IP65 and designed for indoor or outdoor industrial applications.

Stainless steel and higher environmental protection options are also available for more demanding environments.

Yes. Our large digit displays use high-efficiency LED technology designed for excellent visibility, including outdoor and direct-sunlight applications.

Display brightness can also be adjusted to suit the installation environment.

IP65 is suitable for many factory, dusty and outdoor industrial applications and is standard on the FUSION large digit range.

For more demanding washdown, marine, coastal or harsh environments, stainless steel IP66 and other enhanced protection options are available.

Yes. Our EXnR FUSION range is available for suitable Zone 2 and Zone 22 applications.

Different input versions are available including process, load cell, serial, pulse and temperature depending on the application. Link to this product range is here: ATEX Zone 2 Large Digit Displays

Yes. Suitable display configurations can use colour changes and alarm thresholds to make abnormal conditions immediately obvious.

For example, a process value could display green during normal operation and change to red when a preset limit is exceeded.

Different LED colour options are available depending on the display and application.

Colour can also be used to communicate process status, alarms or operating conditions more clearly to staff.

Yes. Multiple FUSION displays can be incorporated into a single custom enclosure to create multi-line industrial displays.

Typical applications include Target/Actual displays, multiple temperatures, pressure and flow, individual and total weights or several production values.

Yes. Alongside our standard FUSION range, London Electronics can manufacture customised displays using our proven industrial display hardware.

Digit size, number of digits, legends, enclosure, mounting, communications, inputs and overall layout can all be configured around the application.

Yes. Wireless communication options are available for applications where installing data cabling is difficult or impractical.

We can recommend the most appropriate wireless technology based on the required distance, environment and source of the data.

Our large digit display range can accept a wide variety of industrial signals including 4–20mA, 0–10V, load cell, thermocouple, RTD, pulse, frequency, RPM, serial and industrial network data.

The correct input version is selected according to where your measurement or information is coming from.

Yes. Large load cell displays are particularly useful for crane, hoist and industrial weighing applications where operators need to see the load clearly from a distance.

Systems can also incorporate alarms and additional control functions depending on the application.

Yes. Large LED displays are ideal for weighbridge and vehicle weighing applications where the measured weight needs to be clearly visible to drivers or operators.

Remote communication allows the large display to reproduce weight information from the weighing system.

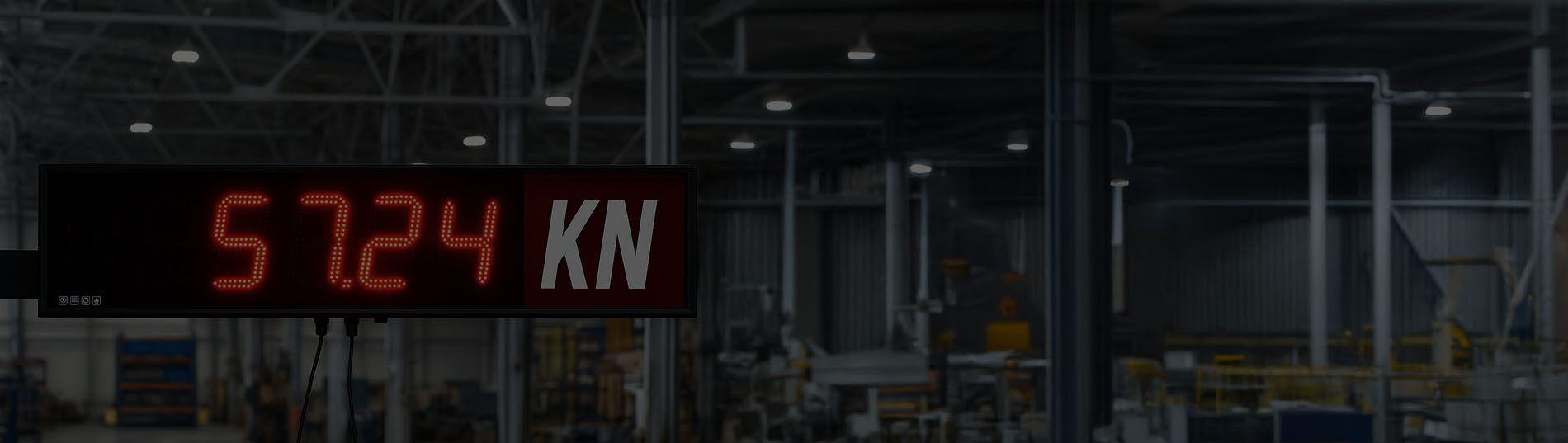

Yes. Large industrial displays are widely used in factories and warehouses for production counts, timers, temperature, weighing, process measurements, loading operations and other information that needs to be visible across a large area.

Yes. London Electronics designs and manufactures its industrial display products in the UK at our Bedfordshire manufacturing facility.

We have more than 30 years of experience designing and manufacturing industrial electronic displays and instrumentation.

Lead time depends on digit size, input type and enclosure.

Many standard FUSION displays can be supplied quickly, while larger, stainless steel, hazardous-area and custom-built versions require additional manufacturing time. If you have a specific project deadline, let us know and we will advise the best available option.

Yes. London Electronics large digit displays are supplied with a 3-year manufacturer’s warranty.

UK-based technical support is also available for configuration, wiring and integration assistance.

Our large digit displays are designed for continuous industrial operation and use high-efficiency LED technology and industrial-grade electronics.

London Electronics has FUSION installations that have operated for many years in demanding industrial and outdoor applications.

Yes. A large remote display can often reproduce information from an existing instrument, sensor, PLC or control system so that the measurement can be seen from much further away.

The correct solution depends on what output signal or communications are available from your existing equipment.

The three most useful pieces of information are what you want to display, where the data is coming from and how far away it needs to be read.

Tell us your viewing distance, input signal or communications type and installation environment, and we can recommend the appropriate large digit display.
