FUSION-P

Function / Input Type

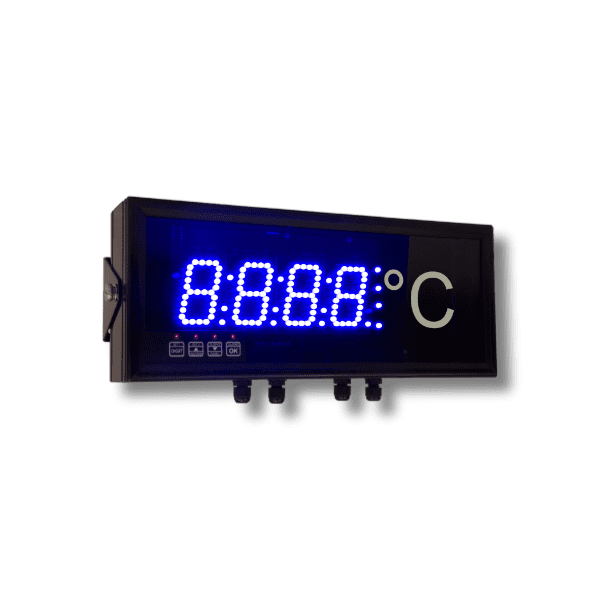

These large digit displays are designed especially to be super easy to set up, saving you valuable time and money. Plus, they are precise, stable, and cost-effective. You and your staff will be delighted with the clear, high contrast display, which has adjustable brightness to suit all viewing environments.

The FUSION Large displays let you clearly see important information from a distance. We make large displays that accept most industrial process signals such as 4-20mA, 0-10V, 1-5V, etc. These are ideal for crane load displays, weighbridge displays, temperature, humidity, power, RPM, etc.

They make perfect commercial sense, even when compared to cheaper displays, because they take so little time to set up and will continue working perfectly for years and years even in harsh industrial environments.

This family accepts the following signals and sensor types:

• Any DC voltage from 0-12V
• Any DC current from 0-25mA
• 2, 3 or 4 wire 4-20mA humidity transmitters
• 2, 3 or 4 wire 4-20mA pressure transmitters
• 2, 3 or 4 wire 4-20mA load cell transmitters
• 2, 3 or 4 wire 4-20mA temperature transmitters
• 2, 3 or 4 wire 0-10V amplified signal transmitters
• 3 wire position / length / angle potentiometer inputs

These can be easily scaled to read your process variable, thanks to a unique user-friendly FUSION calibration system. Displays are available to show your measurement in 3,4,5 or 6 digit format. We can also print units text on the display to show oC, Bar, %rh, mmHg, litres, gallons, tonnes etc.

What size characters do I need?

With London Electronics displays, you have a wide choice of character heights for different viewing distances.

You should measure the maximum viewing distance you’ll need, and use this table to work out the ideal character size for you.

This will make sure you won’t have to struggle to read the display. And, you won’t pay too much for a display which is bigger than you need.

• 2 inch (57mm) = legible up to 25m (75ft)
• 4 inch (102mm) = legible up to 50m (150ft)
• 6 inch (150mm) = legible up to 75m (240ft)
• 8 inch (200mm) = legible up to 100m (330ft)
• 12 inch (300mm) = legible up to 150m (490ft)
• 16 inch (400mm) = legible up to 200m (650ft)

Dimensions

Wall Mounting dimensions

Suspension Mounting dimensions

Panel Mounting dimensions
