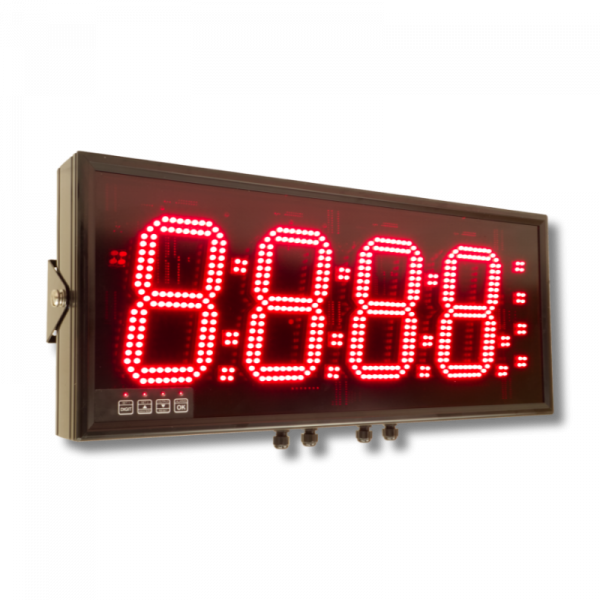

FUSION-L

Large Digit Load Cell Input Displays

FUSION Large digit displays let you clearly see important information from a distance. We make large displays which accept accepts standard load cells with 4 or 6 wire connection and 10V excitation up to 120mA. Ideal for weight, torque, strain, pressure and stress measurements.
  • 4 or 6 digit display
  • Digit colours available
    • 2” and 4” - green, red or yellow
    • 6” and above – blue, green, red, white or yellow
  • Digit brightness available as either indoor or outdoor
  • Fully sealed IP65 all round
  • 10V DC output to power your sensor
  • Viewing distances available from 25m up to 200m
  • AC or DC powered
  • Wall, Suspension or panel mounting
  • Alarm output relays, analog output and comms output options

Function / Input Type

These large digit displays are designed especially to be super easy to set up, saving you valuable time and money. Plus, they are precise, stable, and cost-effective. You and your staff will be delighted with the clear, high contrast display, which has adjustable brightness to suit all viewing environments.

The FUSION Large displays let you clearly see important information from a distance. We make large displays which accept accepts standard load cells with 4 or 6 wire connection and 10V excitation up to 120mA. Ideal for weight, torque, strain, pressure and stress measurements.

They make perfect commercial sense, even when compared to cheaper displays, because they take so little time to set up and will continue working perfectly for years and years even in harsh industrial environments.

They accept most common weight, torque, force and strain related signal sources, such as:

  • Up to 4 x 350 Ohm 4 or 6 wire load cells
  • Half bridge strain sensors
  • 0-10V from weight transmitters
  • 4-20mA from weight transmitters
  • RS232 / RS485 from weighbridge scales
  • Most common fieldbus signals
  • T24 wireless data from digital load cells

These can be easily scaled to read your process variable, thanks to a unique user-friendly Fusion calibration system. Displays are available to show your measurement in 3,4,5 or 6 digit format. We can also print units text on the display to show oC, Bar, %rh, mmHg, litres, gallons, tonnes etc.

What size characters do I need?

With London Electronics displays, you have a wide choice of character heights for different viewing distances.

You should measure the maximum viewing distance you’ll need, and use this table to work out the ideal character size for you.

This will make sure you won’t have to struggle to read the display. And, you won’t pay too much for a display which is bigger than you need.

  • 2 inch (57mm) = legible up to 25m (75ft)
  • 4 inch (102mm) = legible up to 50m (150ft)
  • 6 inch (150mm) = legible up to 75m (240ft)
  • 8 inch (200mm) = legible up to 100m (330ft)
  • 12 inch (300mm) = legible up to 150m (490ft)
  • 16 inch (400mm) = legible up to 200m (650ft)

Dimensions

Wall Mounting dimensions

Suspension Mounting dimensions

Panel Mounting dimensions

Input Signal

Load Cell, 4mV/V, 10mV/V (Optional)

Displayed Reading

Scalable

Digit Height

2 inch (57mm), 4 inch (102mm), 6 inch (150mm), 8 inch (200mm), 12 inch (300mm), 16 inch (400mm)

Number of Digits

4, 6

Digit Colours

White, Indoor brightness, White, Outdoor brightness, Blue, Indoor brightness, Blue, Outdoor brightness, Green, Indoor brightness, Green, Outdoor brightness, Red, Indoor brightness, Red, Outdoor brightness, Yellow, Indoor brightness, Yellow, Outdoor brightness

Analogue Output

-10 to +10V, 4-20mA, 0-10V

Alarm Outputs

2 x SPST mechanical relays (AL2), 4 x SPST mechanical relays (AL4), 2 x solid state relays (DSS), 4 x solid state relays (QSS), 2 x SPCO mechanical relays (SPCO), 4 x SPCO mechanical relays (excludes data interface) (4SPCO)

Data Interface

RS232 (232), RS422/RS485 + Modbus ASCII (485), Modbus RTU

Excitation

10V DC @ 120mA, Optionally 5V DC

Supply Voltage

95-265V AC (AC), 11-30V DC (DC), 19-53V AC

Power Burden

40VA maximum

Mounting Options

Wall Mounting, Suspension Mounting, Panel Mounting

Sealing

IP65 all round, suitable for washdown environments

Case Material

Black uPVC with acrylic lens

Operating Temperature

0C to +50 Deg. C

Unit Of Measure

White vinyl lettering (Please specify)

Delivery

We know you’re excited to receive your order, and we’re working hard to keep parcels moving as quickly as possible whilst also ensuring the safety of our factory and warehouse staff.

Please note, that delivery times are confirmed at the time of order and are estimated, not guaranteed. If you would like to check on the availability and lead time of a particular product, please contact Customer Services at [email protected].

No matter where you are, the size of your order, or how fast you need it – we have a delivery option for you!

UK Mainland Orders:

For current delivery prices please click on the link below. For items not listed in the price list, please request a quote and we will endeavour to provide a price for you as quickly as possible.

https://www.london-electronics.com/pricelists/delivery-within-mainland-uk/

The method of shipment will be at our discretion unless otherwise specified on our acknowledgment. We will however take all reasonable steps to comply with your specific shipping requests

International Orders

At this time we do not accept international payments through our shop. However, no matter where you are in the world we can supply our products to you. Please request a quote through the online form, and a member of our sales team will be in contact with you to discuss further.

Price depends on the delivery location, weight, and value of your order.

Arrange Your Own Collection

You are more than welcome to use your own courier to collect your order if preferred. Alternatively, you can come and see us to collect the order in person.

For either of these options simply select ‘Collect in Person’ or ‘Collect via own Courier’ at the checkout.

It’s safe to say that we’re living through some changeable times right now, so if you’d like to stay up to date with the latest news on how we’re responding, sign up to our newsletter on the link below.

https://www.london-electronics.com/newsletter-sign-up/

Function / Input Type

These large digit displays are designed especially to be super easy to set up, saving you valuable time and money. Plus, they are precise, stable, and cost-effective. You and your staff will be delighted with the clear, high contrast display, which has adjustable brightness to suit all viewing environments.

The FUSION Large displays let you clearly see important information from a distance. We make large displays which accept accepts standard load cells with 4 or 6 wire connection and 10V excitation up to 120mA. Ideal for weight, torque, strain, pressure and stress measurements.

They make perfect commercial sense, even when compared to cheaper displays, because they take so little time to set up and will continue working perfectly for years and years even in harsh industrial environments.

They accept most common weight, torque, force and strain related signal sources, such as:

  • Up to 4 x 350 Ohm 4 or 6 wire load cells
  • Half bridge strain sensors
  • 0-10V from weight transmitters
  • 4-20mA from weight transmitters
  • RS232 / RS485 from weighbridge scales
  • Most common fieldbus signals
  • T24 wireless data from digital load cells

These can be easily scaled to read your process variable, thanks to a unique user-friendly Fusion calibration system. Displays are available to show your measurement in 3,4,5 or 6 digit format. We can also print units text on the display to show oC, Bar, %rh, mmHg, litres, gallons, tonnes etc.

What size characters do I need?

With London Electronics displays, you have a wide choice of character heights for different viewing distances.

You should measure the maximum viewing distance you’ll need, and use this table to work out the ideal character size for you.

This will make sure you won’t have to struggle to read the display. And, you won’t pay too much for a display which is bigger than you need.

  • 2 inch (57mm) = legible up to 25m (75ft)
  • 4 inch (102mm) = legible up to 50m (150ft)
  • 6 inch (150mm) = legible up to 75m (240ft)
  • 8 inch (200mm) = legible up to 100m (330ft)
  • 12 inch (300mm) = legible up to 150m (490ft)
  • 16 inch (400mm) = legible up to 200m (650ft)

Dimensions

Wall Mounting dimensions

Suspension Mounting dimensions

Panel Mounting dimensions

Input Signal

Load Cell, 4mV/V, 10mV/V (Optional)

Displayed Reading

Scalable

Digit Height

2 inch (57mm), 4 inch (102mm), 6 inch (150mm), 8 inch (200mm), 12 inch (300mm), 16 inch (400mm)

Number of Digits

4, 6

Digit Colours

White, Indoor brightness, White, Outdoor brightness, Blue, Indoor brightness, Blue, Outdoor brightness, Green, Indoor brightness, Green, Outdoor brightness, Red, Indoor brightness, Red, Outdoor brightness, Yellow, Indoor brightness, Yellow, Outdoor brightness

Analogue Output

-10 to +10V, 4-20mA, 0-10V

Alarm Outputs

2 x SPST mechanical relays (AL2), 4 x SPST mechanical relays (AL4), 2 x solid state relays (DSS), 4 x solid state relays (QSS), 2 x SPCO mechanical relays (SPCO), 4 x SPCO mechanical relays (excludes data interface) (4SPCO)

Data Interface

RS232 (232), RS422/RS485 + Modbus ASCII (485), Modbus RTU

Excitation

10V DC @ 120mA, Optionally 5V DC

Supply Voltage

95-265V AC (AC), 11-30V DC (DC), 19-53V AC

Power Burden

40VA maximum

Mounting Options

Wall Mounting, Suspension Mounting, Panel Mounting

Sealing

IP65 all round, suitable for washdown environments

Case Material

Black uPVC with acrylic lens

Operating Temperature

0C to +50 Deg. C

Unit Of Measure

White vinyl lettering (Please specify)
