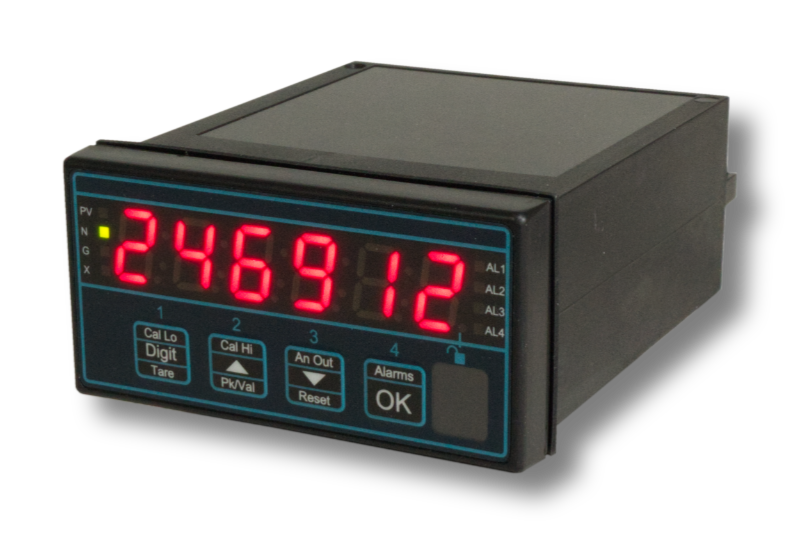

INT5-S

Precision Serial Data Input Panel Meter

The INT5 represents the latest evolution in our industry-leading 1/8 DIN panel meter range. Building on the proven success of the INT4, this fifth- generation model delivers unmatched speed, performance, and flexibility, making it the most powerful and versatile meter we produce. The INT5-S is a 1/8 DIN panel meter which accepts common serial ASCII data signals such as RS232 and RS485. The digital indicator utilises a modular construction technique that enables you to configure it with the exact functionality you require, this flexible approach ensures that you only pay for the features you need.
  • RS232, RS485 input panel meter
  • 6 digit display
  • Selectable digit brightness to suit indoor or outdoor environments
  • Selectable digit colour, amber, green or red
  • Digit colour can be linked to alarm settings for a visible response to conditions
  • Choice of output options
  • 95-265V AC or 100-300V DC, or 11-30V DC powered
  • IP65 front panel sealing
  • 6 logic input ports with selectable functionality


Function / Input Type

These panel meters are designed especially to be super easy to set up, saving you valuable time and money. Plus, they are precise, stable and cost-effective.

The INT5-S is the latest version of our Intuitive 1/8 DIN panel meter range which accepts common serial ASCII data signals such as RS232, RS422 and RS485.

At the heart of the INT5 is our patented input design, allowing seamless integration with virtually any sensor type. It features a crisp 6-digit LED display as standard, driven by a high-resolution 24-bit A/D converter and ultra-fast sampling rates ensuring precise, real-time readings in any environment.

Now available with field-selectable digit colours (red, green, or amber), which can be linked to the alarm function, the INT5 offers the best visual clarity of any panel meter.



Dimensions

Weight N/A
Dimensions N/A
Digit Height

14.2mm
Digit Colours

Green, Red, Yellow
Number of Digits

6
Input Signal

Modbus ASCII, Modbus RTU, RS485 (S4), RS232 (S2)
Analogue Output

0-20mA, 4-20mA, 0-10V
Alarm Outputs

4 x solid state relays (QSS), 2 x SPDT mechanical relays, 4 x SPDT mechanical relays, 2 x solid state relays (DSS)
Data Interface

RS232, RS485
Number of Data Ports

2
Supply Voltage

95-265V AC or 100-300V DC, 11-30V DC (DC)
Bezel Size

96mm wide x 48mm high
Panel Cutout

92mm wide x 45mm high
Depth Behind Panel

125mm
Front Panel Sealing

IP65 standard, IP67 with optional SPC4 cover
Operating Temperature

0C to +50 Deg. C

Accessories

SPC4 Splash Proof Cover
The SPC4 splash proof cover is designed to fit most makes of 1/8 DIN digital panel meters. It increases the front panel sealing to IP67 and provides impact protection. View product
Wall Mounting Enclosure
Our WALLBOX option showing an INT4 panel meter with SPC4 splash proof cover. We can customise by adding pushbuttons, selector switches, LEDs, etc. View product
PCC Cases
The PCC range of cases are great for turning panel mounting meters into portable desktop units. We can customise by adding pushbuttons, selector switches, LEDs, etc. View product
DIN Rail Mounting
Our DIN rail mounting option turns our INT4 panel meters into high precision signal conditioners for mounting inside control cabinets. View product
Dual Wall Mounting Enclosure
The WALLBOX2 allows 2 1/8 DIN panel meters to be placed in a wall mounting enclosure. View product
