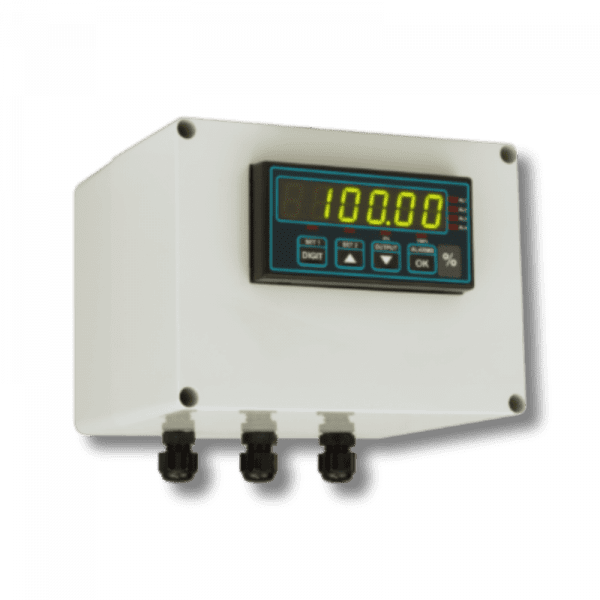

Our Wall Mounting Enclosure (WALLBOX) is designed to contain your 1/8 DIN panel meter in a secure manner. It is made of ABS with 3 glands in the rear. It comes with the Splash Proof Cover (SPC4) to provide front sealing of IP67.
| Dimensions | 1 panel meter 140mm (h) x 160mm (w) x 120mm (d) |
|---|---|
| Case Material | Light grey ABS (RAL 7035) |
| Enclosure Rating | IP65 |
| IK rating | IK07 |
| Temperature | Continuous -40°C to 60°C, Short-term -40°C to 80°C |
Wall-Box: Sealed wall mounting enclosure
