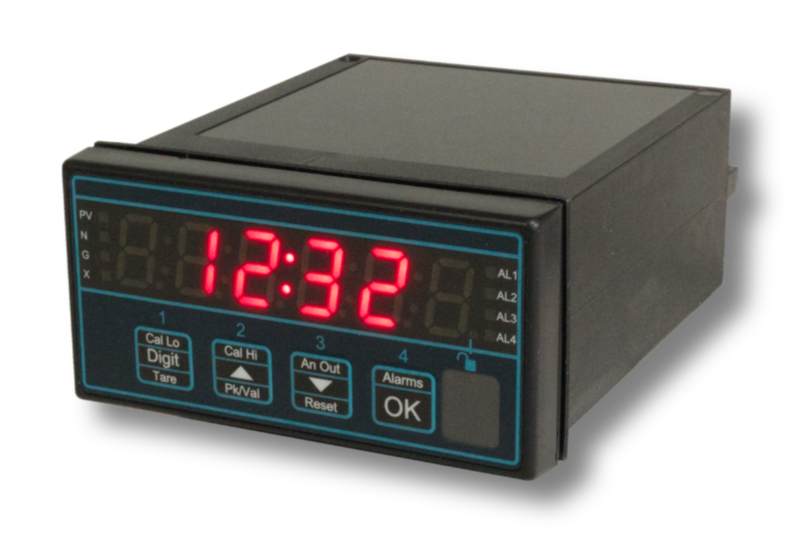

INT5-H

Function / Input Type

The INT5-H is the latest version of our Intuitive 1/8 DIN panel meter range with Real-time clock mode and up or down timing modes.

At the heart of the INT5 is our patented input design, allowing seamless integration with virtually any sensor type. It features a crisp 6-digit LED display as standard, driven by a high-resolution 24-bit A/D converter and ultra-fast sampling rates ensuring precise, real-time readings in any environment.

Now available with field-selectable digit colours (red, green, or amber), which can be linked to the alarm function, the INT5 offers the best visual clarity of any panel meter.

This digital panel meter is easy to use and has high precision and stability. It has a number of timing modes, which are:

• Clock mode – HH:MM:SS
• Day counter mode – number of days elapsed since last reset
• HH:MM timer mode
• MM:SS timer mode
• SSSS timer mode
• SSSSS.t timer mode
• MMMM timer mode
• HH:MM:SS timer mode
• DD:MM:YY calendar mode
• MM:DD:YY calendar mode

You can preset a starting time to count down from, set the timer to stop when it reaches 0, or to carry on below zero showing a negative value.

This panel meter can be fitted with isolated output signal modules to add control and data sharing functions.

Dimensions
