SS-FUSION-C

Function / Input Type

These large digit displays are designed to be easy to set up, saving you valuable time and money. Plus, they are precise, stable, and cost-effective. You and your staff will be delighted with the clear, high contrast display, which has adjustable brightness to suit all viewing environments.

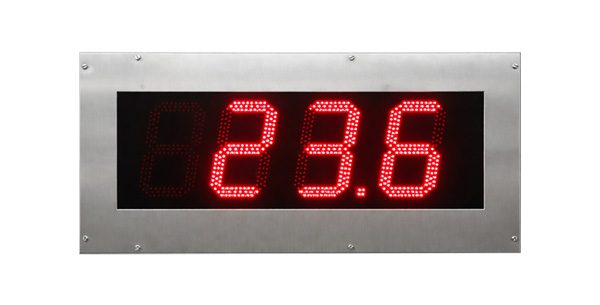

FUSION Stainless Steel Large displays are sealed to IP66 and let you clearly see important information from a distance. These large pulse input counter and rate meter displays accept most industrial signals such as NPN, PNP, contact closure, quadrature, PLC 24V, etc. They are ideal for showing totalizer, rate or RPM, etc.

Standard large digital pulse-input LED display capabilities:

• 24V DC sensor power voltage provided as standard
• Scalable totaliser / counter with 1-4 input channels
• Scalable production rate meter, with adjustable averaging and sampling period
• Scalable frequency meter for showing generator Hz.
• Scalable RPM display, 1 up to 5000 pulses per rev.
• Scalable quadrature counter for showing distance or angle
• Dual input UP/DOWN counter for showing Produced-Rejects
• Non-volatile memory of achieved total
• 3 year warranty

These display capabilities can be easily scaled to read your process variable, thanks to a unique user-friendly FUSION calibration system. Displays are available to show your measurement in 4 or 6 digit format. We can also print units text on the display to show °C, Bar, %rh, mmHg, litres, gallons, tonnes etc.

What size characters do I need?

You should measure the maximum viewing distance you’ll need, and use this table to work out the ideal character size for you.

This will make sure you won’t have to struggle to read the display. And, you won’t pay too much for a display which is bigger than you need.

• 2 inch (57mm) = legible up to 25m
• 4 inch (102mm) = legible up to 55m
• 6 inch (150mm) = legible up to 80m
• 8 inch (200mm) = legible up to 110m
• 12 inch (300mm) = legible up to 155m
• 16 inch (400mm) = legible up to 205m
