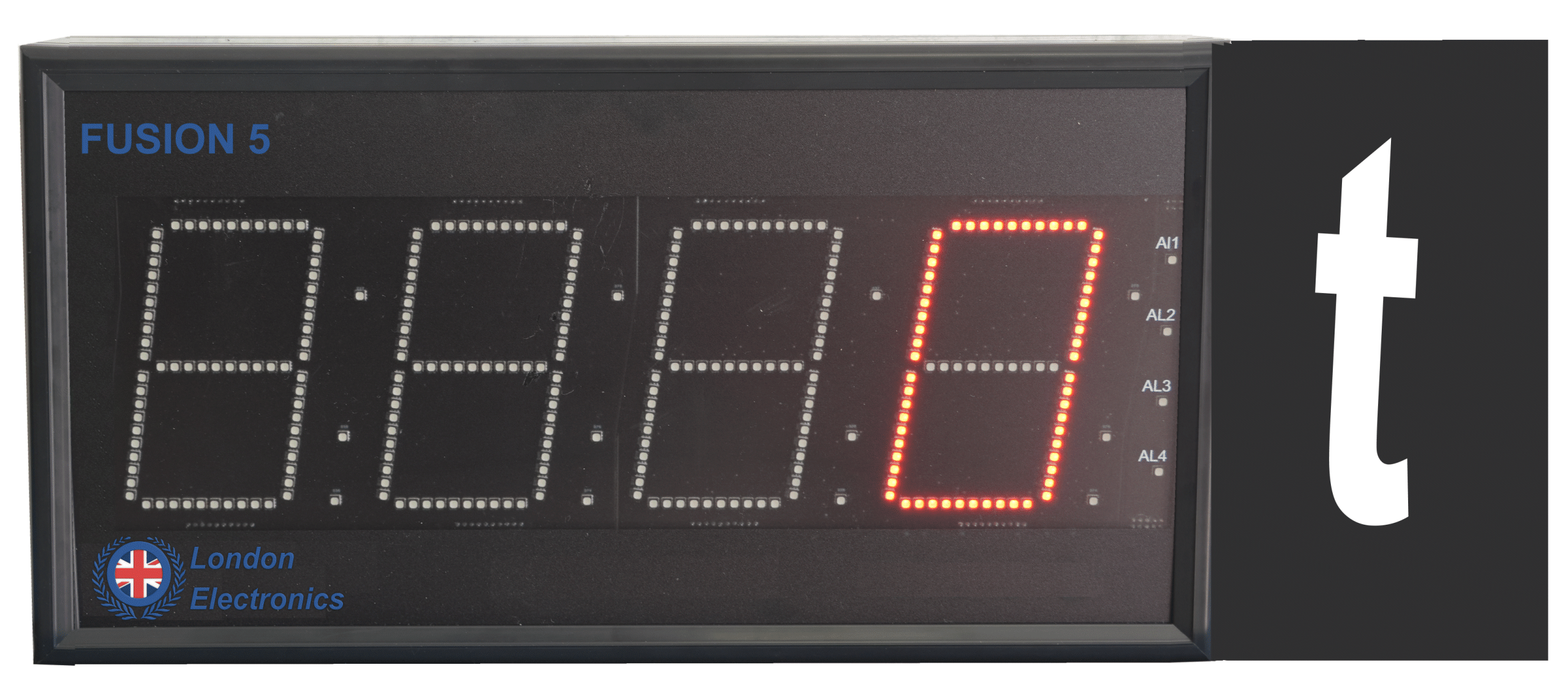

FUSION5-P

Function / Input Type

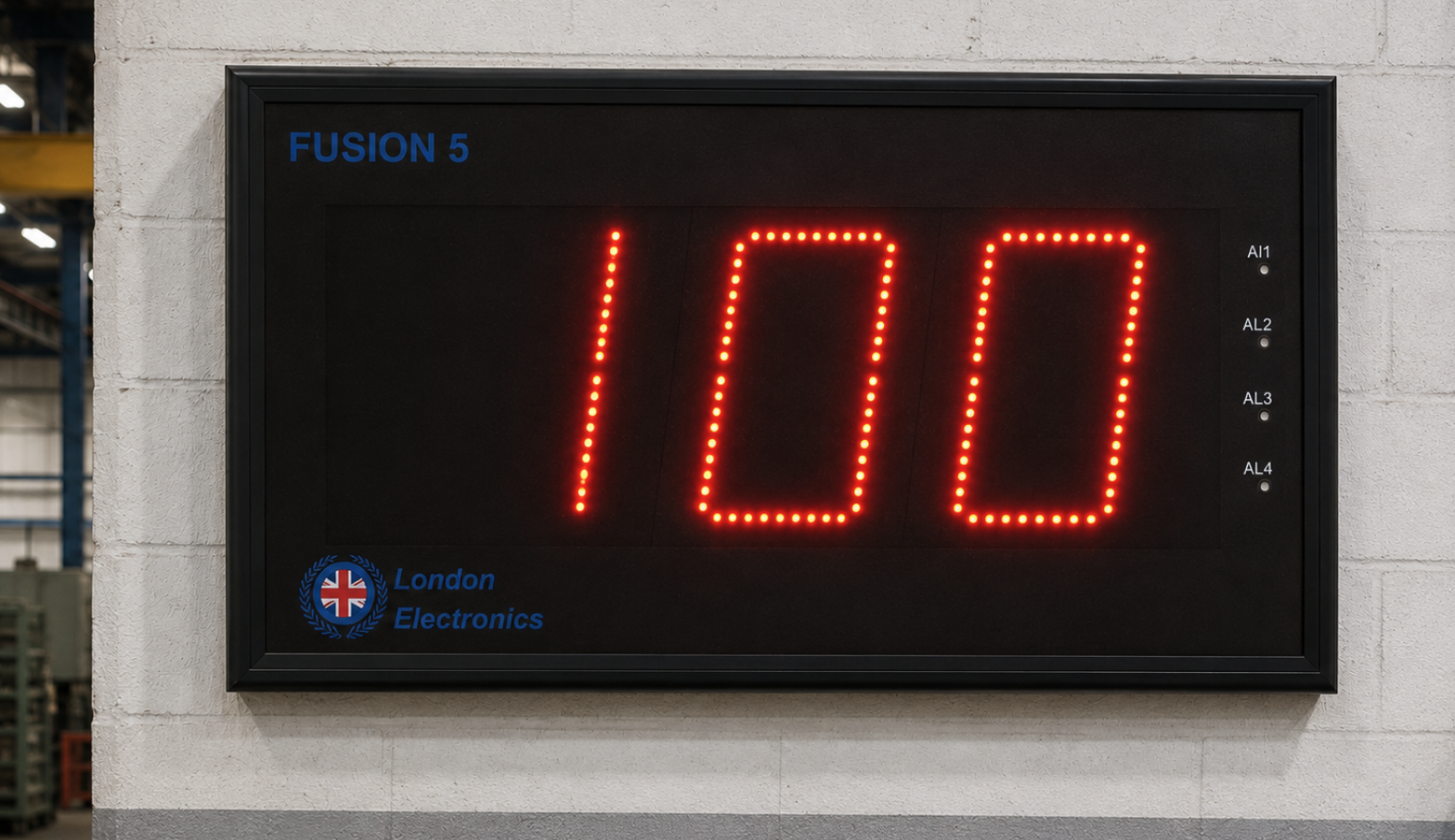

FUSION5 large-digit process displays are designed for quick and straightforward setup, saving valuable installation time and cost. They provide precise, stable and reliable operation, with a clear, high-contrast display and adjustable brightness for comfortable viewing in all lighting conditions.

The FUSION5 makes important process information clearly visible from a distance. It accepts common industrial analogue signals, including 4–20 mA, 0–10 V and 1–5 V, making it easy to connect to sensors, transmitters, PLCs and control systems.

Typical applications include crane load indication, weighbridge displays, temperature, humidity, pressure, level, power, speed and RPM monitoring.

Built for long-term use in demanding industrial environments, these displays make excellent commercial sense. Their simple configuration reduces installation costs, while their robust construction provides years of dependable operation.

Signal and sensor options

• Any DC voltage signal from 0–12 V
• Any DC current signal from 0–25 mA
• Two-, three- or four-wire 4–20 mA humidity transmitters
• Two-, three- or four-wire 4–20 mA pressure transmitters
• Two-, three- or four-wire 4–20 mA load-cell transmitters
• Two-, three- or four-wire 4–20 mA temperature transmitters
• Two-, three- or four-wire 0–10 V amplified transmitters
• Three-wire position, length or angle potentiometers

The display can be easily scaled to show the required process value using the user-friendly FUSION5 calibration system. Models are available with four or six digits, depending on the required measurement range and resolution.

Engineering units can be printed directly onto the display, including:

• °C
• °F
• bar
• % RH
• mmHg
• litres
• gallons
• tonnes
• kg
• RPM
• Other engineering units on request

Colour-changing LEDs are also available, allowing the digit colour to change according to the measured value or alarm condition. For example, the display can show green during normal operation, amber when approaching a limit and red when immediate action is required.

Typical applications

• Crane load and overload indication
• Weighbridge displays
• Temperature and humidity monitoring
• Pressure and vacuum indication
• Tank, silo and vessel levels
• Flow-rate monitoring
• Power and energy measurement
• Speed and RPM indication
• Position, distance and angle measurement
• Production and process monitoring
• Remote display of PLC analogue values

Output and communication options

Depending on the selected configuration, options can include:

• Alarm relay outputs
• Isolated 4–20 mA analogue retransmission
• Isolated 0–10 V analogue retransmission
• RS232 communications
• RS485 communications
• Modbus connectivity
• Ethernet and industrial fieldbus interfaces

These options allow the display to communicate with PLCs, data loggers, supervisory systems and other industrial equipment.

What character size do I need?

Measure the maximum distance from which the display must be read, then use the guide below to select the most suitable character height.

Choosing the correct character size ensures that the display remains easy to read without paying for a larger model than your application requires.
