Alphanumeric Tri-Colour Display

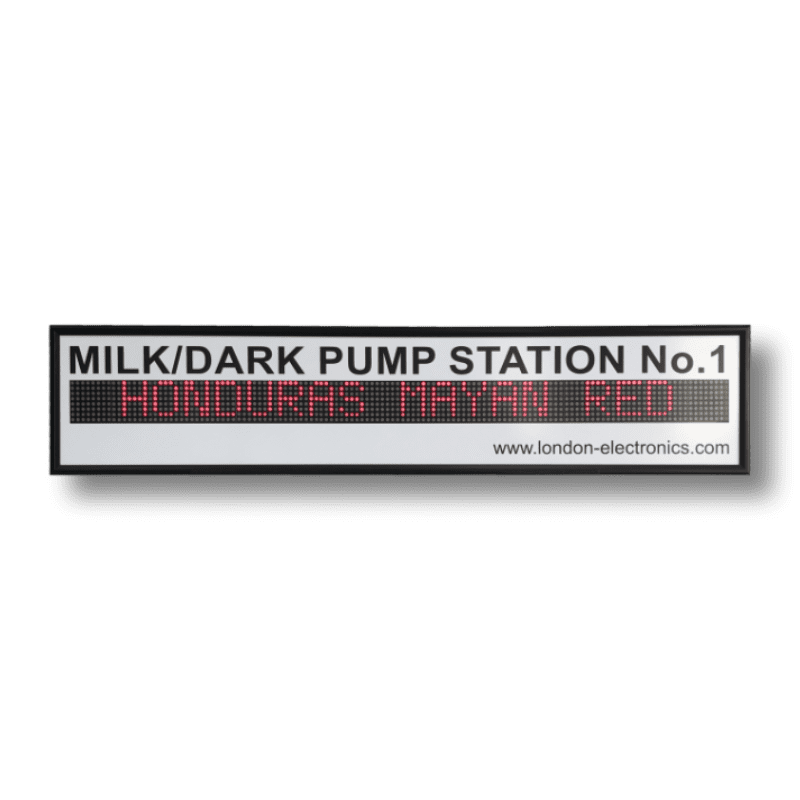

The TITAN alphanumeric, tri-colour LED, message display is a versatile product that allows information to be displayed in the form of numbers and letters. Our TITAN displays use a modular construction method which allows us to produce a display specific for your requirements. This display has a character height of 53mm (8 pixels) giving a viewing distance up to 26m.

LED colours, green, red and yellow
Fully sealed IP65 all round
Wall, suspension or panel mounting
Isolated RS232/RS485 or binary input

Description
Specifications

Input Signal	RS232, RS422/485, Binary contact closure, Ethernet TCP/IP, Ethernet/IP, Profibus, Profinet, USB to RS485 converter
Characters Per Row	5 characters 53mm high (TITAN-32×8), 10 characters 53mm high (TITAN-64×8), 16 characters 53mm high (TITAN 96×8), 21 characters 53mm high (TITAN-128×8), 26 characters 53mm high (TITAN-160×8), 32 characters 53mm high (TITAN-192×8), 37 characters 53mm high (TITAN-224×8), 42 characters 53mm high (TITAN-256×8)
Digit Brightness	Indoor brightness, Outdoor brightness
Supply Voltage	100-240V AC, 12V DC, 24V DC, 5V DC
Mounting Options	Panel Mounting, Suspension Mounting, Wall Mounting
Case Material	Black uPVC with acrylic lens
Digit Colours	Green, Red, Yellow
Digit Height	53mm
Enclosure Rating	IP65
Operating Temperature	0 to 50 Deg. C
Storage Temperature	-20C to +70 Deg.C
