SS-FUSION-PN

Large Digit Profinet Input Displays

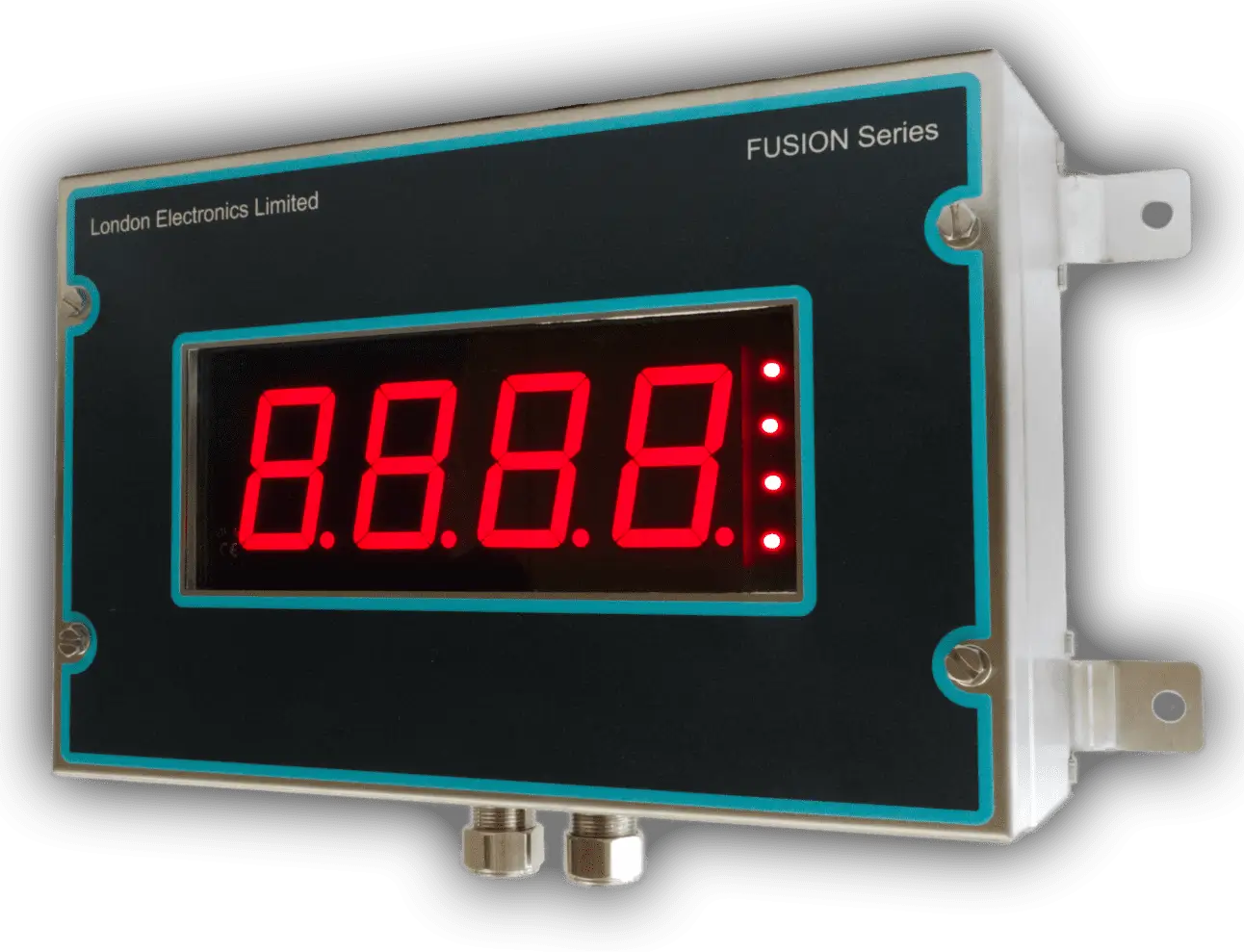

Our FUSION-PN Stainless Steel large displays are sealed to IP66. They let you clearly see important information from a distance. This large digit display accepts a profinet input, allowing you to connect the display directly into your PLC. These displays are ideal for showing important information from your factory process.
  • 4 or 6 digit display
  • Digit colours available
    • 2” and 4” - green, red or yellow
    • 6” and above – blue, green, red, white or yellow
  • Digit brightness available as either indoor or outdoor
  • Complete PROFINET-IO Soft-Real-Time (RT) communication
  • Fully sealed IP66 all round
  • IP65 RJ45 Connection
  • All common baud rates are accepted
  • Viewing distances available from 25m up to 200m
  • AC or DC powered
  • Wall or Suspension mounting
  • Alarm output relays, analog output and comms output options

Function / Input Type

These large digit displays are designed to be easy to set up, saving you valuable time and money. Plus, they are precise, stable, and cost-effective. You and your staff will be delighted with the clear, high contrast display, which has adjustable brightness to suit all viewing environments.

FUSION-PN Large digit displays let you clearly see important information from a distance. This large digit display accepts a profinet input, allowing you to connect the display directly into your PLC. These displays are ideal for showing important information from your factory process.

They make perfect commercial sense, even when compared to cheaper displays, because they take so little time to set up and will continue working perfectly for years and years even in harsh industrial environments.

We can also print unit text on the display to show kg, oC, Bar, %rh, mmHg, litres, gallons, tonnes etc.

What size characters do I need?

You should measure the maximum viewing distance you’ll need, and use this table to work out the ideal character size for you.

This will make sure you won’t have to struggle to read the display. And, you won’t pay too much for a display which is bigger than you need.

  • 2 inch (57mm) = legible up to 25m (75ft)
  • 4 inch (102mm) = legible up to 50m (150ft)
  • 6 inch (150mm) = legible up to 75m (240ft)
  • 8 inch (200mm) = legible up to 100m (330ft)
  • 12 inch (300mm) = legible up to 150m (490ft)
  • 16 inch (400mm) = legible up to 200m (650ft)

Input Signal

Profinet IO

Digit Height

2 inch (57mm), 4 inch (102mm), 6 inch (150mm), 8 inch (200mm), 12 inch (300mm), 16 inch (400mm)

Number of Digits

4, 6

Digit Colours

White, Indoor brightness, White, Outdoor brightness, Blue, Indoor brightness, Blue, Outdoor brightness, Green, Indoor brightness, Green, Outdoor brightness, Red, Indoor brightness, Red, Outdoor brightness, Yellow, Indoor brightness, Yellow, Outdoor brightness

Analogue Output

-10 to +10V, 4-20mA, 0-10V

Alarm Outputs

2 x SPST mechanical relays (AL2), 4 x SPST mechanical relays (AL4), 2 x solid state relays (DSS), 4 x solid state relays (QSS), 2 x SPCO mechanical relays (SPCO), 4 x SPCO mechanical relays (excludes data interface) (4SPCO)

Data Interface

RS232 (232), RS422/RS485 + Modbus ASCII (485), Modbus RTU

Excitation

24V DC @ 30mA

Supply Voltage

95-265V AC (AC), 11-30V DC (DC), 19-53V AC

Power Burden

40VA maximum

Mounting Options

Wall Mounting, Suspension Mounting

Sealing

IP66 all round

Case Material

316L Stainless Steel Enclosure

Operating Temperature

0C to +50 Deg. C

Unit Of Measure

White vinyl lettering (Please specify)
